Joints
JC 24-CC

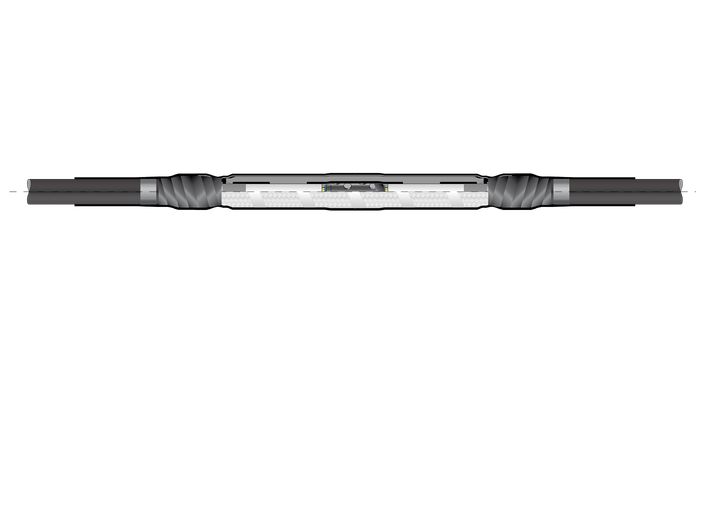

Cold shrink straight joint with joint body made of silicone rubber with outer protective cold shrinking tube made of EPDM, for plastic insulated cables with Cu wire screen up to 24 kV.
Cold shrink straight joint with joint body made of silicone rubber with outer protective cold shrinking tube made of EPDM, for plastic insulated cables with Cu wire screen up to 24 kV.
Produktinformation
Ytterligare produktdata, nedladdningar och certifikat
Produktinformation
Nedladdningar
Produktinformation
Max. Tvärsnitt: 300 mm²
Isolering av kärnan: 22,2 - 34,6 mm
Max. Yttre Hölje Ø: 46 mm
Max. Yttre Hölje: 46 mm
Typ av kärna: Enkel kärna
Systemspänning Ur: 24 kV
Produkttyp: Cold Shrink
Ansökan: Straight Joint
DIN norms: 61442, HD 629.1
