Telecom energy cables

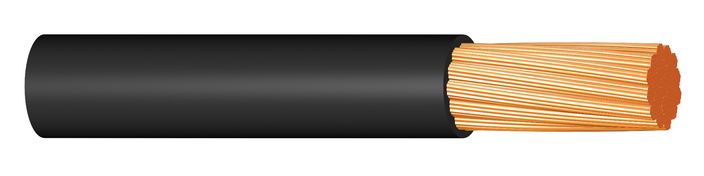

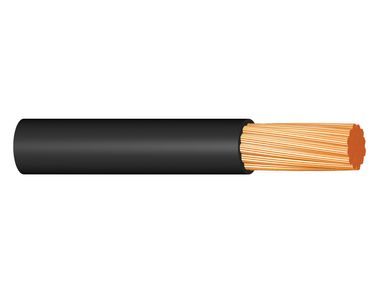

S1Z1
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Single jacket insulation. Halogen free, flame retardant connection cable for internal wiring and grounding of equipment. CPR class Dca and UL recognized. Indoor and outdoor use.
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Single jacket insulation. Halogen free, flame retardant connection cable for internal wiring and grounding of equipment. CPR class Dca and UL recognized. Indoor and outdoor use.
Produktinformation
Ytterligare produktdata, nedladdningar och certifikat
Produktinformation
Nedladdningar
Produktinformation
Material ledare: Koppar
Conductor size: 10AWG (6); 8AWG (10); 6AWG (16); 4AWG (25); 2AWG (35); 1AWG (50)
Material ytterhölje: PE
Antal kärnor: 1
Typ av kärna: Enkel kärna
Bending radius: 3 x OD
Sunlight resistant: Ja
Märkspänning (U0/U): 600/600 V
Max. drifttemperatur: +90°C
Min. drifttemperatur: −20°C
CPR-brandklass: Cca
Ansökan: Grounding cable, Battery cable
Standard/norm: UL recognized
Halogenfritt: Ja
Insulation material: LSZH
Jacket Material: LSZH
Nedladdningar
- Datablad
- DOP
