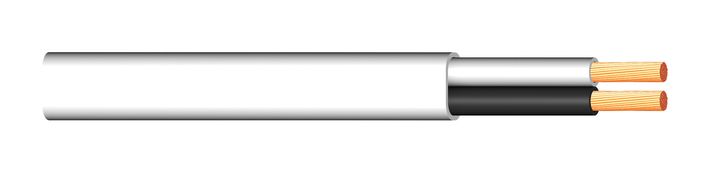

Telecom energy cables
RLH
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. No shield for indoor applications. Slim design. Halogen free, flame retardant cable for battery connection and power supply to radio and other telecom equipment. CPR class Dca and UL listed. Indoor use.
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. No shield for indoor applications. Slim design. Halogen free, flame retardant cable for battery connection and power supply to radio and other telecom equipment. CPR class Dca and UL listed. Indoor use.
Produktinformation
Ytterligare produktdata, nedladdningar och certifikat
Produktinformation
Nedladdningar
Produktinformation
Material ledare: Koppar
Conductor size: 14AWG (2.5); 12AWG (4); 10AWG (6); 8AWG (10); 6AWG (16); 4AWG (25); 2AWG (35); 1AWG (50)
Material ytterhölje: PE
Antal kärnor: 2
Typ av kärna: Flera kärnor
Bending radius: 5 x OD
Märkspänning (U0/U): 600/600 V
Max. drifttemperatur: +90°C
Min. drifttemperatur: −20°C
CPR-brandklass: Dca
Ansökan: Power cable, Battery cable
Standard/norm: UL listed
Halogenfritt: Ja
Insulation material: LSZH
Jacket Material: LSZH
Nedladdningar
- Datablad
- DOP
